Quod "Safety porta" in photovoltaic systems: et discrimine partes dejudit virgas

In "familiae" de photovoltaic potentia generationem ratio, ibi existit a tacere custos - et disconnect switch. Tamen inconspicuam, hoc pars est crucial pro ensuring tutum ratio operationem. Sit scriptor explorarent momenti huius vitalis "salutem custos."

DEJUGO SWITCH: De salute portam potentiae systems

A disconnect switch, ut nomen suggerit, est switching fabrica solebat segregare circuits. Et clavis characteres includit:

(I) Visibilis Fractio Points

(II) Nemo arcu-extinxit facultatem (stricte prohibitus foro operationem)

(III) Prima munus providing electrica solitudo praesidium

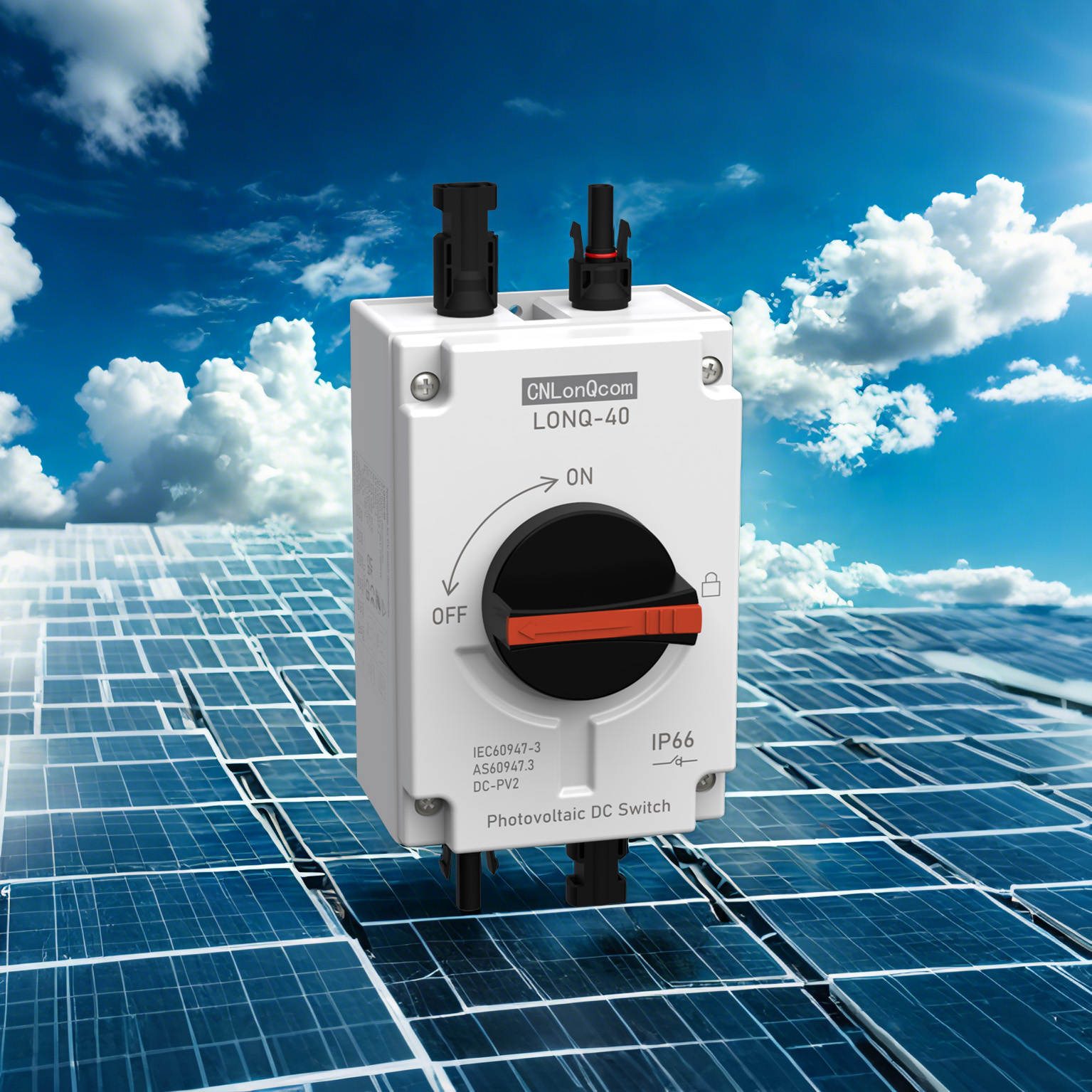

Special features of PV Disconnect SWitches

PV systems eget specialized Disconnect virgas quod differunt significantly ex conventional virgas:

DC-specifica consilium:

PV Systems generate Direct Current, ubi DC arcus magis difficile ad extinguere quam ac arcu, necessitating speciali consilio considerari.

Superiore voltage rating:

Dum familia AC Systems agunt ad 220V, PV systems potest pervenire 600V vel etiam 1500V.

Dual Donec:

Typice exigit simultaneous disiunctio utrumque positivum et negans vectes ut completum secum.

Tempestas resistentia:

Features IP67 IMPERVIUS inclusis ut sustinere dura velit environments, cum PA materiae quod efficaciter resistere UV radialis, altum temperaturis et humiditas.

Quattuor essentialia rationes ad installing Disconnect SWitches in PV Systems

(I) Salutis sustentationem postulationem:

PV modules continuously generate potestate cum exposita lucem, faciens dijunectis virgas essentiale ad integram potestatem solitudo.

(II) DC Arcus praesidio:

Pro Disconnect Switches potest control arcus durationem intra 2ms.

(III) System Sustentacionem necessitates:

Inverter sustentacionem et systematis expansion operationes requirere praestatur integram potestatem solitudo.

(IV) Regulatory Mandate:

Internationalis signa sicut IEC 60947-3 expressly eget installation.

Pro institutionem signa installation

(I) Installation Location Requisita:

DC initus terminum in inverters (Amet)

Output terminum combiner boxes (commendatur)

Intra ≤3 metris in inverters (vexillum postulationem)

(II) De mensuris installation processus:

① confirmare completum ratio potentia-off

② Select bene-ventilated installation locis

③ Vertical Installation (Hastam ≤5 °)

④ Usus PV-specifica MC4 Iungo

⑤ obstringere terminals ad certa torque (typically 4-5n · m)

⑥ Install dustproof et IMPERVIING Signing Annulorum

Salus operatio considerations

(I) operatio signa:

Oportet uti instrumenta instrumenta

Gerunt 1000V insulated caestus durante operatio

Disconnect AC latus ante DC latus

(II) sustentationem requisita:

Vestibulum mechanica operationem probat

Quarterly Contact Conditions Inspectionibus

Annual Contact Resistance Mensura (<50Mω)

(III) Electio criteria:

Voltage Rating ≥1.25 × Ratio voltage

Current Rating ≥1.56 × ISC

Oportet enim TUV / ul / VDE Certification

Frequenter Interrogata Quaestiones

Q: potest regularis switches adhiberi potest?

A: absolute non! Conventional Switches non firmiter interpellat DC Current et facile causa arcu.

Q: Disconnect SWitches opus cotidie operatio?

A: No. praesertim serve ut salus tergum cogitationes et tantum operari cum necessaria.

Q: Quot Disconnect Switches enim ratio opus?

A: At minimum, unum ad inverter initus; Larger systems addere eos ad combiner boxes.

Conclusio

PV Disconnect virgas munus sicut familia fuses - inconspicuum in cotidiana operatio sed potentia vitae et proprietate, salvis in discrimine moments. Tria elementa sunt necessaria: qualis products, mensuris institutionem, et regularis inspectiones. Memento in PV systems, salus semper primum?

Nam consilio PV systems vel salute de existentium installations, cnlonqcom providet peritus consultatio ad ornare ratio cum certa "salute portas." Tutum electricity usum incipit cum eligens ius DEJUGNCTW!
