DC Circuit Breaker LQL7-PV

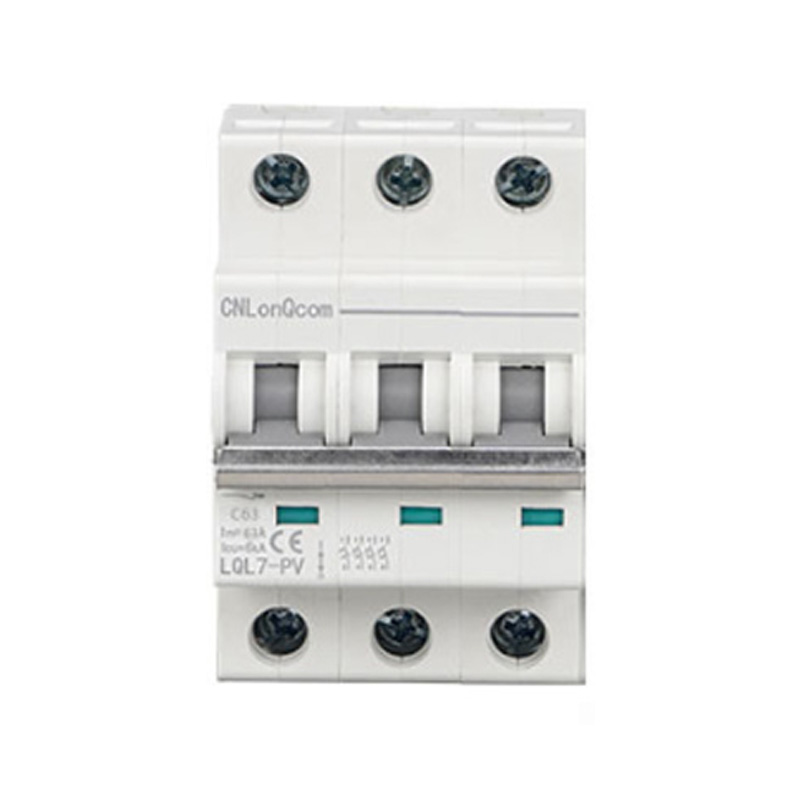

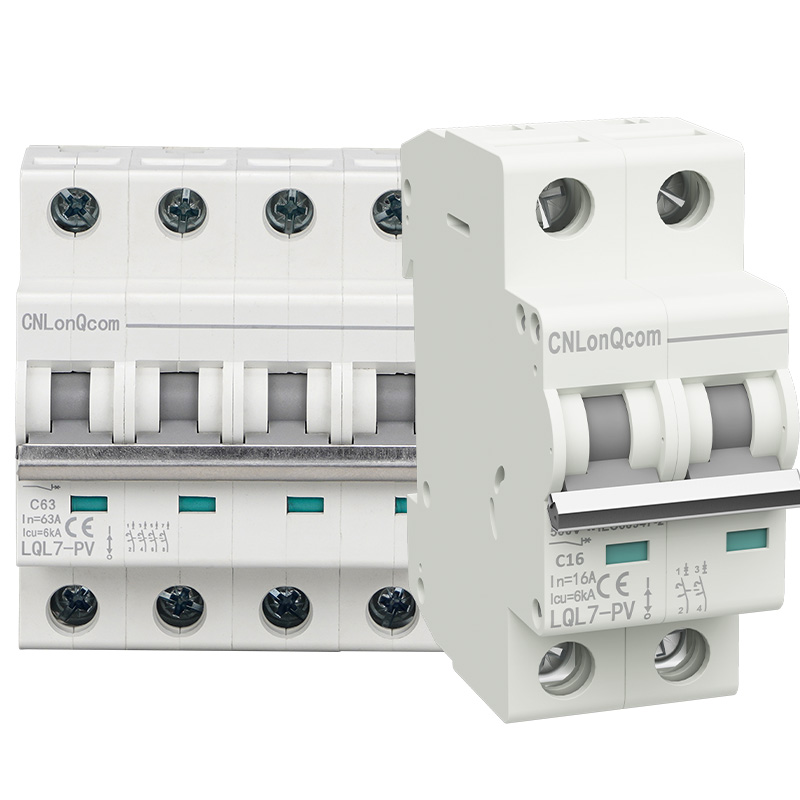

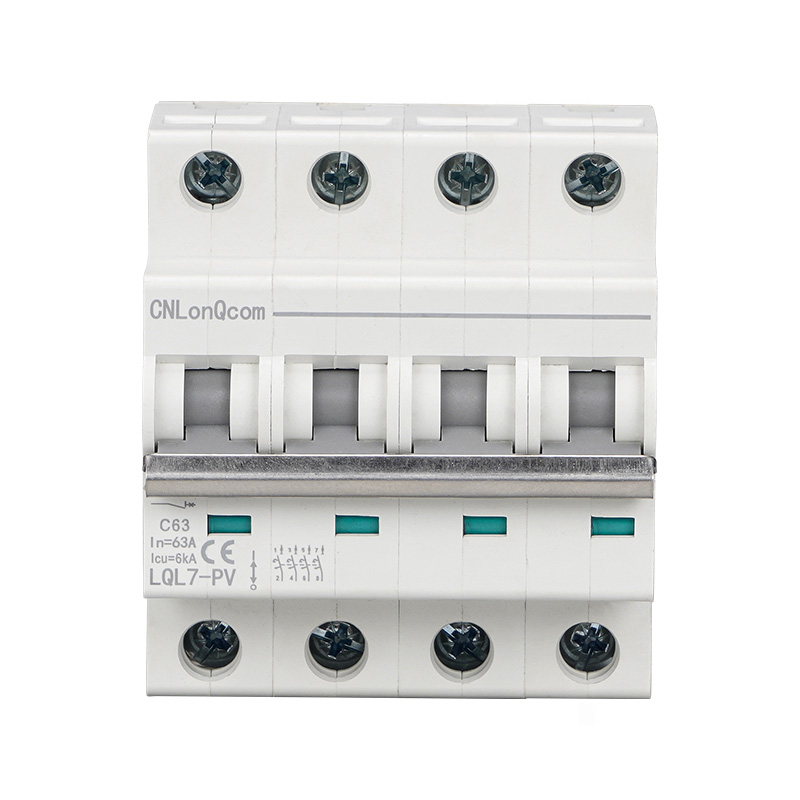

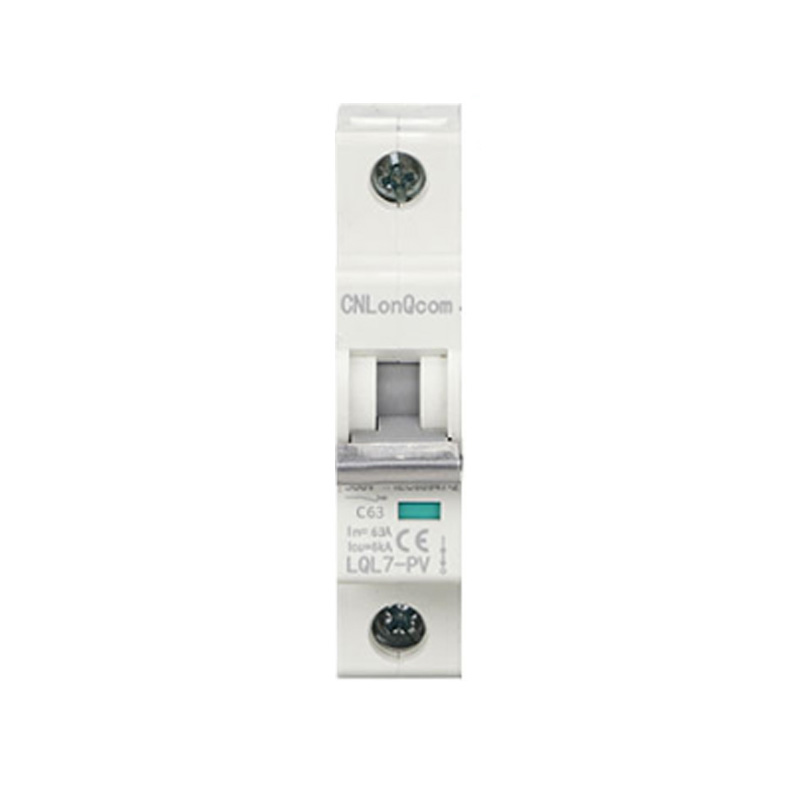

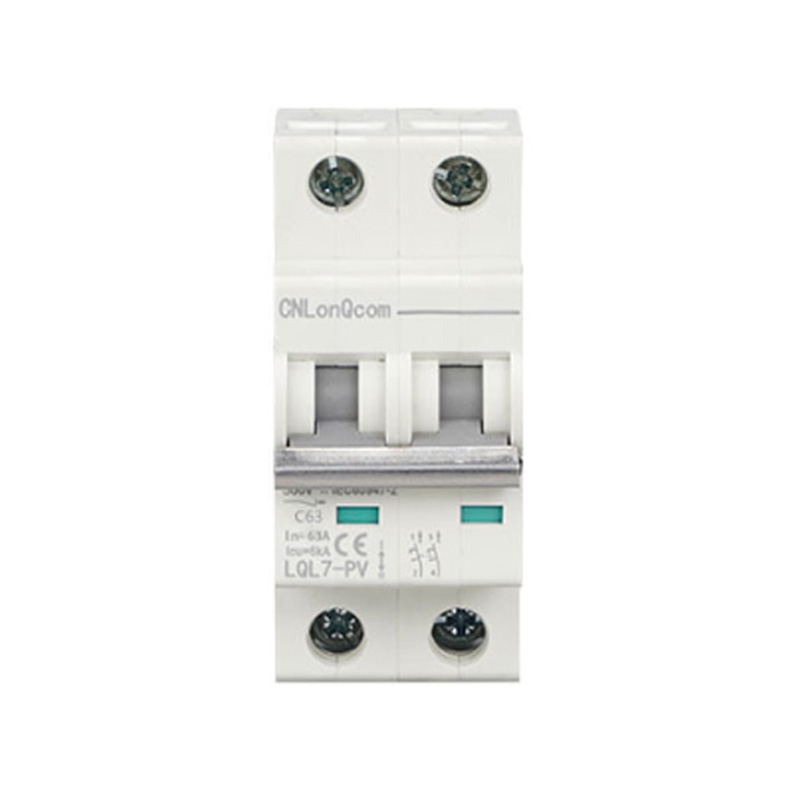

CNLonQcom DC Circuit Breaker LQL7-PV 1P 2P 3P 4P 35mm DIN Rail Mount for PV System Overload and Short Circuit Protection
Rated intentione: DC300V/600V/ 900V/1200V
●Rated current: 6A/10A/16A/20A/25A/32A/40A/50A/63A
Braking Capacitas Icu: 10kA
●Polones: 1P/2P/3P/4P
● Materia Testa: PA
●Conductor materialis: aeris
●Certificatorium: CE, ROHS, ISO9001
Model:LQL7-PV
Mitte Inquisitionem
depictio producti
DC Circuit Breaker LQL7-PV quae nativus acceptis munera praebent interruptionis ambitu, ambitu brevi tutelae, commensurationi et tutelae, efficaciter ad vitae electrici instrumenti tendentis.
Apparatum electricam tuentur ab damnis per onera, circuitus breves, vel alia vitia electrica.
1.DC ambitum dorum efficaciter eatur, culpis arcuum liquefaciendis.
2. They auxilium ne electrica calefactio delicta.
3. Apta est Celsius ad 80 gradus Celsius extremos ambitus vndique ab -40 gradibus.
4.Equipped cum clausura IP65 repugnans UV pro officinae velit.
Apparatum electricam tuentur ab damnis per onera, circuitus breves, vel alia vitia electrica.
1.DC ambitum dorum efficaciter eatur, culpis arcuum liquefaciendis.
2. They auxilium ne electrica calefactio delicta.
3. Apta est Celsius ad 80 gradus Celsius extremos ambitus vndique ab -40 gradibus.
4.Equipped cum clausura IP65 repugnans UV pro officinae velit.
Productum specifications mensam
| LQL7-PV Series Circuit Breaker | LQL7-PV | ||||
| Artus gradu current aestimavit (A) | 63 | ||||
|
|
Electrical perficientur | ||||
| Ue operating voltage rated (V DC) | 1P：DC250V 2P：DC550V 3P：DC750V 4P：DC1000V | ||||
| Current Rated in (A) | 6-10-16-20-25-32-40-50-63 | ||||
| Rated velit voltage Ui (V DC) | 1P: DC250V 2P: DC550V 3P: DC750V 4P: DC1000V | ||||
| sine telo impulsum voltage Uimp (kV) | 4 | ||||
| Ultima solveret facultatem lcu (ka) | 6 | 6 | 6 | 6 | |
| Currere facultatem lcs fractionis (% lcu) | 75% | 75% | 75% | 75% | |
| Genus curva | C | ||||
| Genus scandali | Scelerisque magnetic | ||||
| Mechanica | Mediocris valorem re | 20000 | |||
| Vexillum valorem | 8500 | ||||
| Electric | Mediocris valorem re | 2500 | |||
| Vexillum valorem | 1500 | ||||
|
|
Imperium et indicium | ||||
| Shunt release (SHT) | Option | ||||
| Undervoltage release (UNT) | |||||
| Contactus auxiliaris (AX) | |||||
| Terror contactus (AL) | |||||
|
|
Connexionem et institutionem | ||||
| Facultatem Wiring (mm2) | In ≤ 32A,1~25mm2,1 ≥ 40A,10~35mm2 | ||||
| Ambiens temperatus (℃ ) | -90 | ||||
| altitudo | ≤ 2000 | ||||
| Relativum humidify | ≤ 95% | ||||
| Pollutio gradu | 3 | ||||
| Installation environment | Non obvious tremor et inpulsa | ||||
| Genus institutionem | Classis |
||||
| Institutionem | DIN Standard rail | ||||

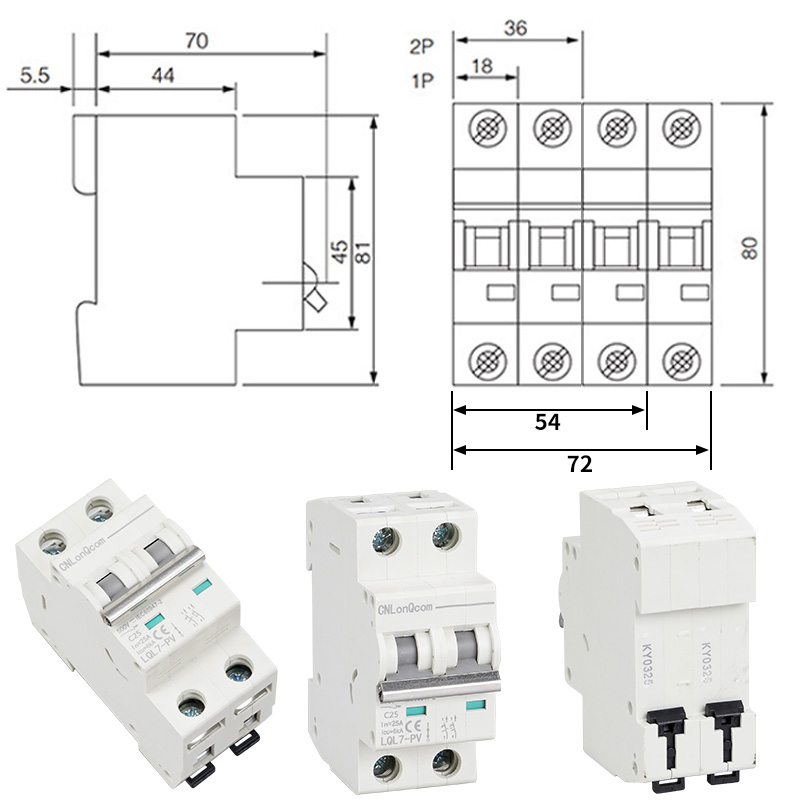

Dimensiones (mm)
Producas imagines principales, delineatas delineatas, et applicationes missionum.
