Products

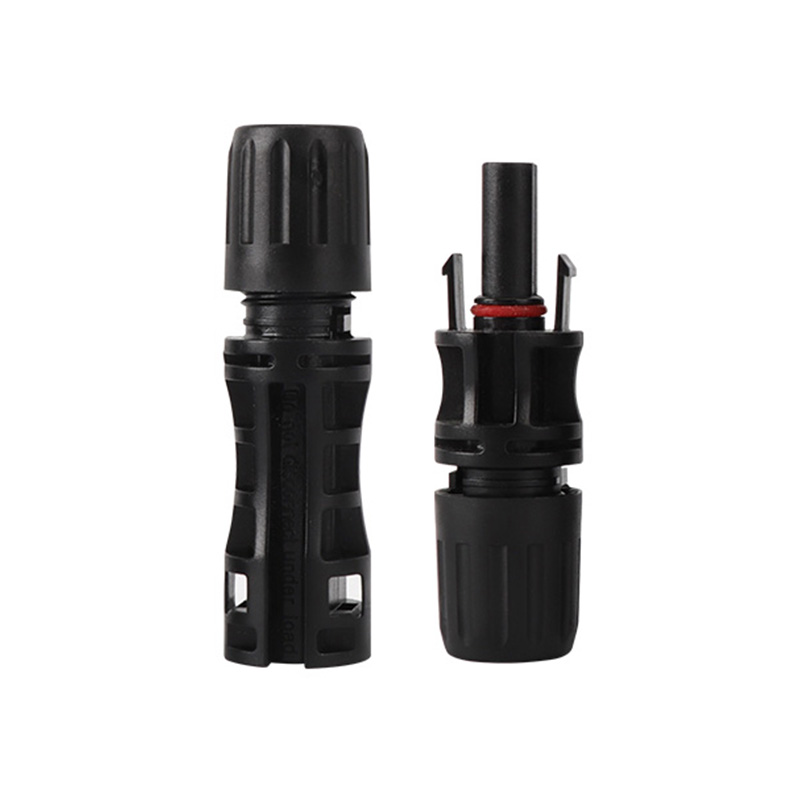

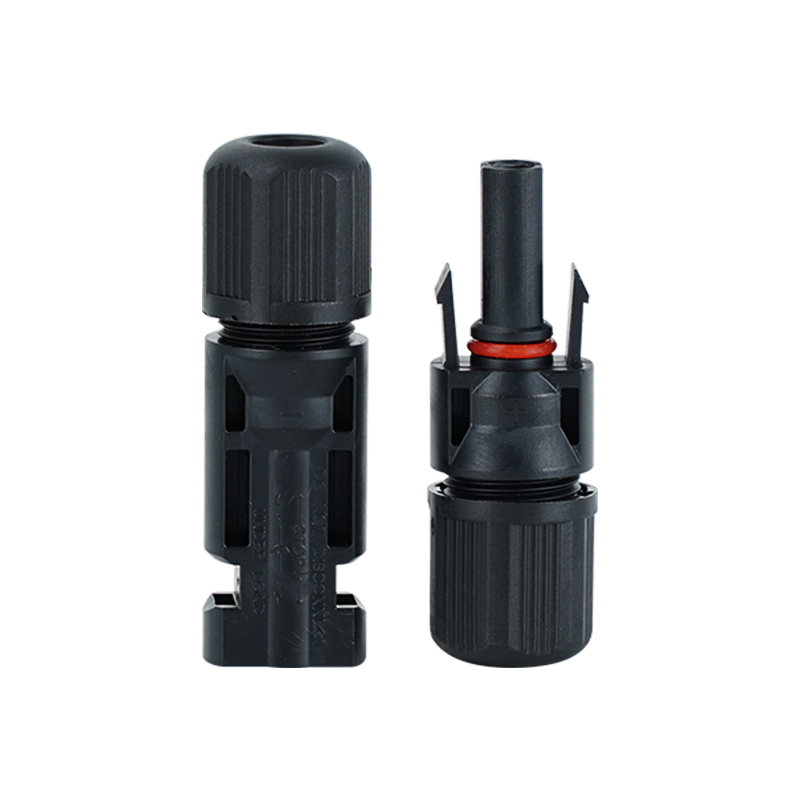

LMC4 solaris connector
CNLonQcom est officina Sinica specialiter in productione Lupi de LMC4 connexionibus solaris. LMC4 connexiones solares principaliter adhibentur ad chordas cellulas solares connexiones, praestantes electricas et mechanicas effectus offerentes. Dispositae sunt ad aestimationes 1000V et 1500V, cum promptu currentium aestimationes 30A, 45A, 60A.
Model:PV-30A(1000V) PV-45A(1000V)
Mitte Inquisitionem
depictio producti
Qualitas LMC4 connexiones solares in habitationibus vis altae vis insulationis quae repugnant temperaturis, corrosionibus, vaporibus, vibrationibus, et compressionibus.
1. They have low contactu resistentia atque summa constantia.
2.LMC4 Connexiones solares impediunt lacus substantiarum nocivarum et ne pollutiones e mundo efficiunt.
3. Damna efficaciter minuunt in armis phalangis et efficientiam meliorem.
4. Securitatem habent notas quae efficaciter impediunt pericula sicut circuitus breves, onera et aestuantia.
1. They have low contactu resistentia atque summa constantia.
2.LMC4 Connexiones solares impediunt lacus substantiarum nocivarum et ne pollutiones e mundo efficiunt.
3. Damna efficaciter minuunt in armis phalangis et efficientiam meliorem.
4. Securitatem habent notas quae efficaciter impediunt pericula sicut circuitus breves, onera et aestuantia.
PV-30A(1000V) PV-45A(1000V)
TECHNICAL DATA
| Connector system | Φ2.5mm; Φ4mm; Φ6mm |
| Ratum voltage | 1000V DC |
| Ratum current | 30A(2.5mm2;4mm2; 6mm2; 14AWG; 12AWG; 10AWG) 45A(4mm2; 6mm2; 12AWG; 10AWG) |
| Test voltage | 6kV(50HZ,1min). |
| Ambiens temperatus range | -40℃ ...+90℃ (IEC) -40℃ ...+75℃ (UL) |
| Temperans ingenium superius ature | +15℃ (IEC) |
| Gradus tutelae iunguntur | IP67 |
| sine liberis | IP2X |
| Comtact resistof obturaculum connexiones | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contactus materia | Messing, verzinnt Aeris, Stagni, plumbum |
| Nulla materia | PC/PPO |
| Obstructio systematis | Snap-in |
| Flamma classis | UL-94-Vo |
| Sal caligo imbre test, gradus severitatis 5 | IEC 60068-2-52 |
DIMENSIONALIS DUCTUS (MM)
PV-30A(1500V) PV-45A(1500V) PV-60A(1500V)
TECHNICAL DATA
| Connector system | Φ2.5mm; Φ4mm; Φ6mm；Φ10mm |
| Ratum voltage | 1500V DC |
| Ratum current | 30A(2.5mm2;4mm2; 6mm2; 14AWG; 12AWG; 10AWG) 45A(4mm2; 6mm2; 12AWG; 10AWG) 60A(10mm2; 8AWG) |
| Test voltage | 6kV(50HZ,1min). |
| Ambiens temperatus range | -40℃ ...+90℃ (IEC) -40℃ ...+75℃ (UL) |
| Temperans ingenium superius ature | +15℃ (IEC) |
| Gradus tutelae iunguntur | IP67 |
| sine liberis | IP2X |
| Comtact resistof obturaculum connexiones | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contactus materia | Contactus materia Messing, verzinnt Copper Alloy, plumbum patella |
| Nulla materia | PC/PV |
| Obstructio systematis | Snap-in |
| Flamma classis | UL-94-Vo |
| Sal caligo imbre test, gradus severitatis 5 | IEC 60068-2-52 |
DIMENSIONALIS DUCTUS (MM)
PV-30A(1000V)-BD
TECHNICAL DATA
| Connector system | Φ2.5mm; Φ4mm; Φ6mm；Φ10mm |
| Ratum voltage | 1000V DC |
| Ratum current | 30A(2.5mm2;4mm2; 6mm2; 14AWG; 12AWG; 10AWG) 45A(4mm2; 6mm2; 12AWG; 10AWG) |
| Test voltage | 6kV(50HZ,1min). |
| Ambiens temperatus range | -40℃ ...+90℃ (IEC) -40℃ ...+75℃ (UL) |
| Temperans ingenium superius ature | +15℃ (IEC) |
| Gradus tutelae iunguntur | IP67 |
| sine liberis | IP2X |
| Comtact resistof obturaculum connexiones | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contactus materia | Messing, verzinnt Copper Alloy, stannum patella |
| Nulla materia | PC/PPO |
| Obstructio systematis | Snap-in |
| Flamma classis | UL-94-Vo |
| Sal caligo imbre test, gradus severitatis 5 | IEC 60068-2-52 |
DIMENSIONALIS DUCTUS (MM)
PV-30A (1500V) -BD
TECHNICAL DATA
| Connector system | Φ2.5mm; Φ4mm; Φ6mm；Φ10mm |
| Ratum voltage | 1000V DC |
| Ratum current | 30A(2.5mm2;4mm2; 6mm2; 14AWG; 12AWG; 10AWG) |
| Test voltage | 6kV(50HZ,1min). |
| Ambiens temperatus range | -40℃ ...+90℃ (IEC) -40℃ ...+75℃ (UL) |
| Temperans ingenium superius ature | +15℃ (IEC) |
| Gradus tutelae iunguntur | IP67 |
| sine liberis | IP2X |
| Comtact resistof obturaculum connexiones | 0.5mΩ |
| Safetyclass | Ⅱ |
| Contactus materia | Messing, verzinnt Copper Alloy, stannum patella |
| Nulla materia | PC/PV |
| Obstructio systematis | Snap-in |
| Flamma classis | UL-94-Vo |
| Sal caligo imbre test, gradus severitatis 5 | IEC 60068-2-52 |
DIMENSIONALIS DUCTUS (MM)
RFQ
Q1: Esne mercaturam societatis vel officinam?
A1: Ita, CNLonQcom officina Sinica est. LMC4 connexiones solares cum plusquam X annos experientiae in campo fabricamus sumus. Accipimus OEM et ODM.
Q2: Quomodo imperium in officina qualis est?
A2: Omnes products ad C% inspectionem ante amet.
Q3: Quid est acceptabile termini solucionis?
A3: We accept credit cards, Western Union transfers, PayPal, or wire transfers.
A1: Ita, CNLonQcom officina Sinica est. LMC4 connexiones solares cum plusquam X annos experientiae in campo fabricamus sumus. Accipimus OEM et ODM.
Q2: Quomodo imperium in officina qualis est?
A2: Omnes products ad C% inspectionem ante amet.
Q3: Quid est acceptabile termini solucionis?
A3: We accept credit cards, Western Union transfers, PayPal, or wire transfers.
